Pre-Terminated Cables

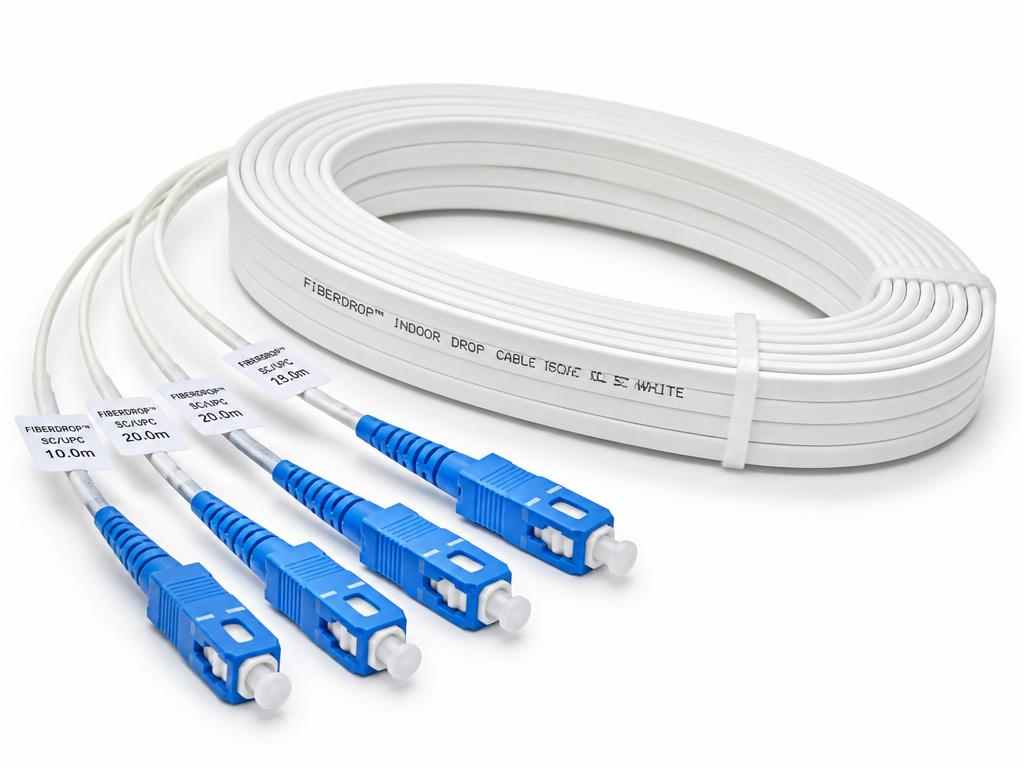

Pre-Terminated Indoor Drop Cable

Pre-Terminated Indoor Drop Cable

Pre-Terminated Cables

OPM-DC

Factory-connectorized indoor drop cable that arrives ready to plug in. Two parallel KFRP strength members give crush resistance while premium connectors are polished and 100% tested before shipping.

Key features

  • Rapidly deployable — ready on arrival, no on-site termination
  • Premium connectors: RL ≥ 55dB, IL ≤ 0.2dB
  • Lower install cost, no scrap and no termination errors
  • Improved attenuation and link loss budget
  • Two parallel KFRP strength members for crush resistance
  • Factory-fitted pulling eyes available
Request a quote 012-2822046

Specifications

Technical data

Fibre type
OS1 / OS2, G657A1 / A2, OM1–OM4
Cable diameter
2 × 3.1 mm or 2 × 5.3 mm
Jacket
LSZH / OFNP / OFNR / PVC
Design life
30 years

Optical performance

Tested values

Insertion loss
SM ≤ 0.2 dB · MM ≤ 0.3 dB
Return loss
SM APC ≥ 60 dB · UPC ≥ 55 dB · MM ≥ 20 dB

Ordering

Format: OPM-DC-<termination>-xxM
Example: OPM-DC-BS-50M

Applications

Where it fits

  • FTTH / FTTx in-building drops
  • Apartment and condominium risers
  • Enterprise floor drops
